Post Thu Jul 09, 2009 1:52 am

Re: Another Boring S10 SFBD (pg2)

Hahahaha, he helped come on he cleaned up the oil spilage on the floor for about 30 secs, now that isnt standing around now is it..... :no:
Big rims are cool but only if you are showing half of them...Dan...
<<

KickEmOpen350

User avatar

17 Inch Wheels
17 Inch Wheels

Posts: 149

Joined: Mon Dec 18, 2006 4:18 pm

Location: Saylorsburg, PA

Post Thu Jul 09, 2009 2:33 am

Re: Another Boring S10 SFBD (pg2)

Well since 95percent of the fab work was done by sat i think ill update this boring sfbd...

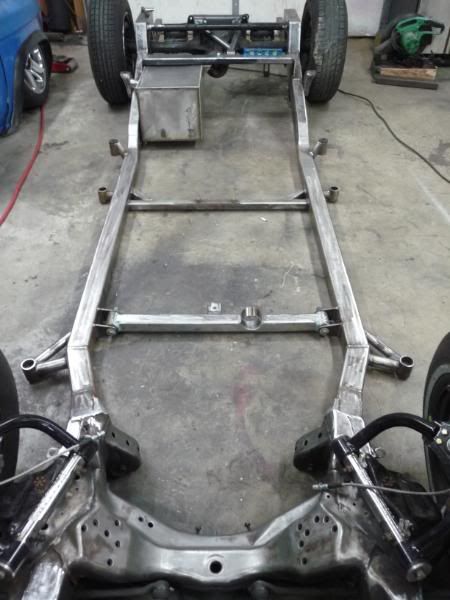

Other rail blended in
Lowered the front clip and slid it 3/4 back
Got the cab on did the cab mounts and did all the sheet metal also got a new tig so had some fun with that
Rear cab mnts
Middle ones
Front mnts and all of them welded
Rewelded the notches and smoothed them and also built a rear clip and blended that in

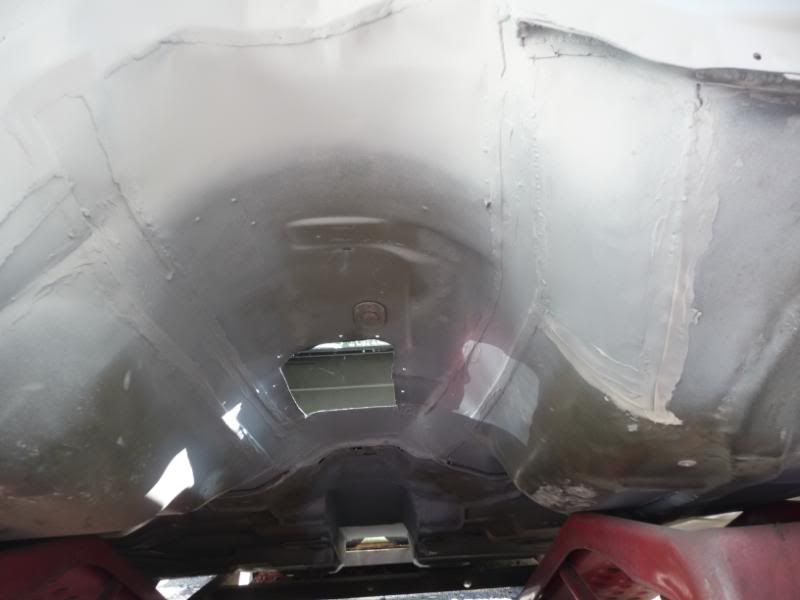

Sheetmetal instead of channeling it we cut the hole floorpan and pulled it up and rewelded it in
Big rims are cool but only if you are showing half of them...Dan...
<<

draggin85s10

User avatar

17 Inch Wheels
17 Inch Wheels

Posts: 341

Joined: Sun Oct 16, 2005 11:49 am

Location: bethlehem,pa

Post Thu Jul 09, 2009 5:16 am

Re: Another Boring S10 SFBD (pg2)

looking badass really clean looking
"If you cant drag with the big dawgs put your ride on the trailer where it belongs"
<<

layedoutnissan

User avatar

DONATING MEMBER

Posts: 2774

Joined: Mon Aug 01, 2005 8:38 am

Location: pa

Post Thu Jul 09, 2009 6:34 am

Re: Another Boring S10 SFBD (pg2)

Looks great. :bow:
<<

Chris..

User avatar

Site Moderator

Posts: 4920

Joined: Thu Aug 04, 2005 1:56 am

Location: Pk Ny

Post Thu Jul 09, 2009 8:12 am

Re: Another Boring S10 SFBD (pg2)

looks real good
C10 will be done NEVER!!!? show season be on the look out!!!! SOLD!!!!!!!
<<

KickEmOpen350

User avatar

17 Inch Wheels
17 Inch Wheels

Posts: 149

Joined: Mon Dec 18, 2006 4:18 pm

Location: Saylorsburg, PA

Post Thu Jul 09, 2009 10:02 am

Re: Another Boring S10 SFBD (pg2)

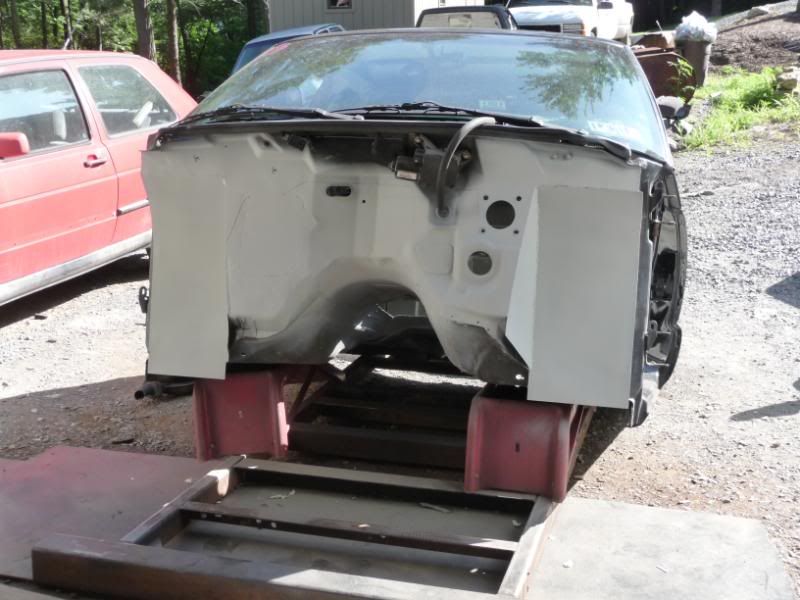

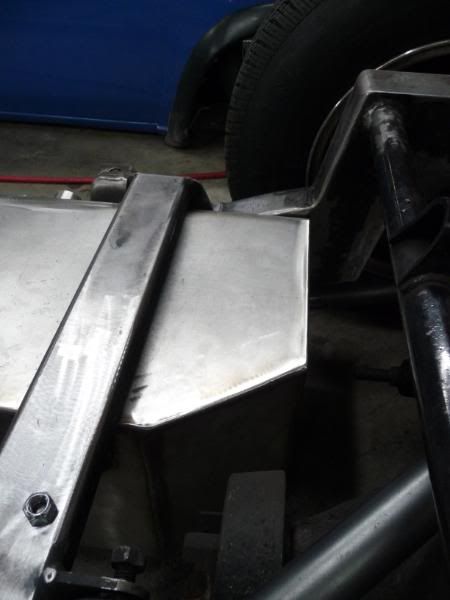

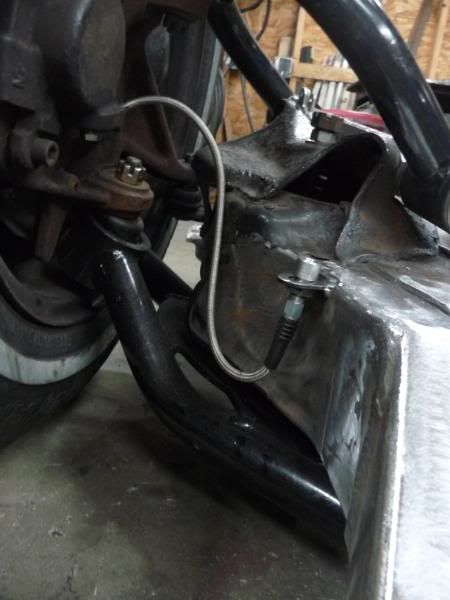

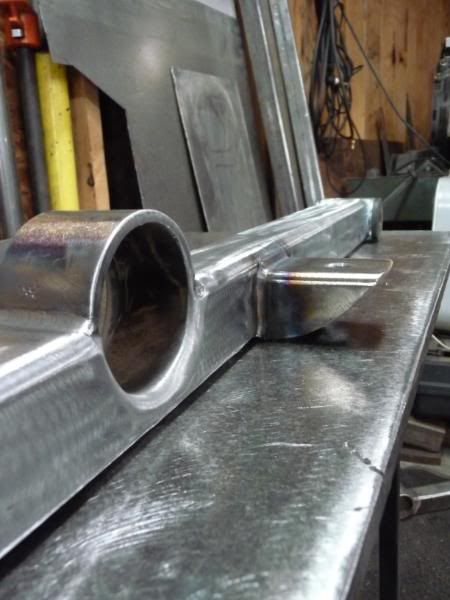

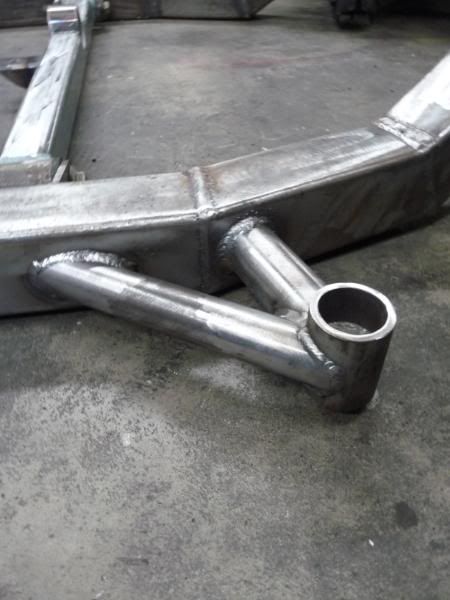

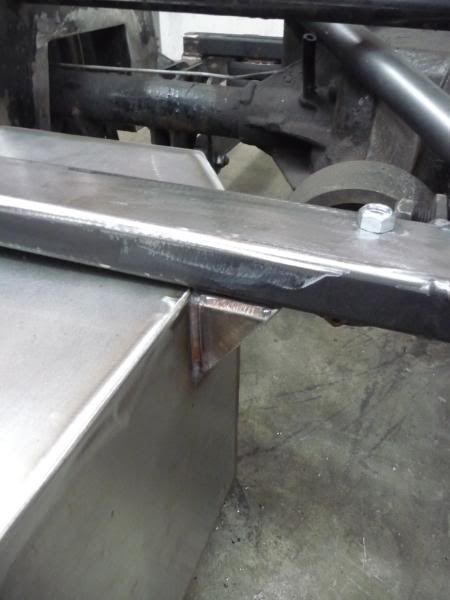

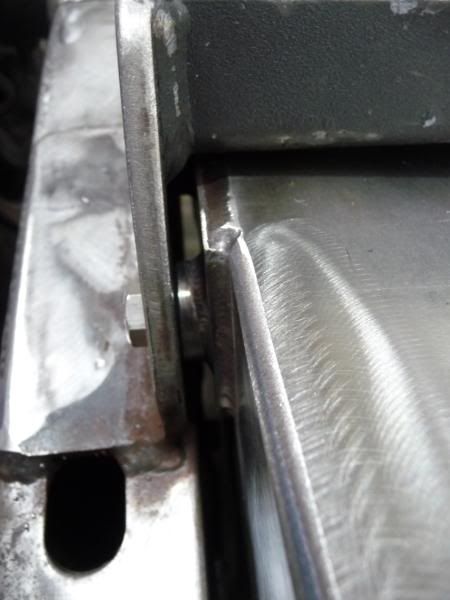

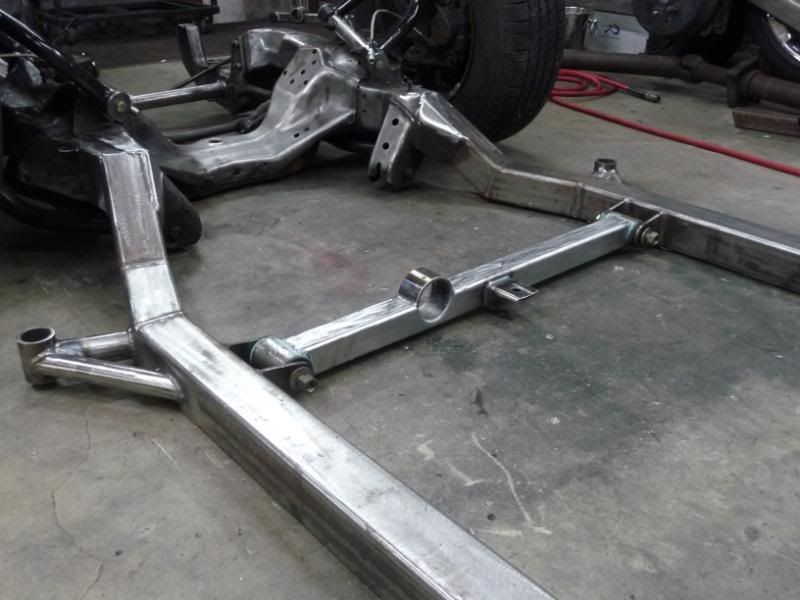

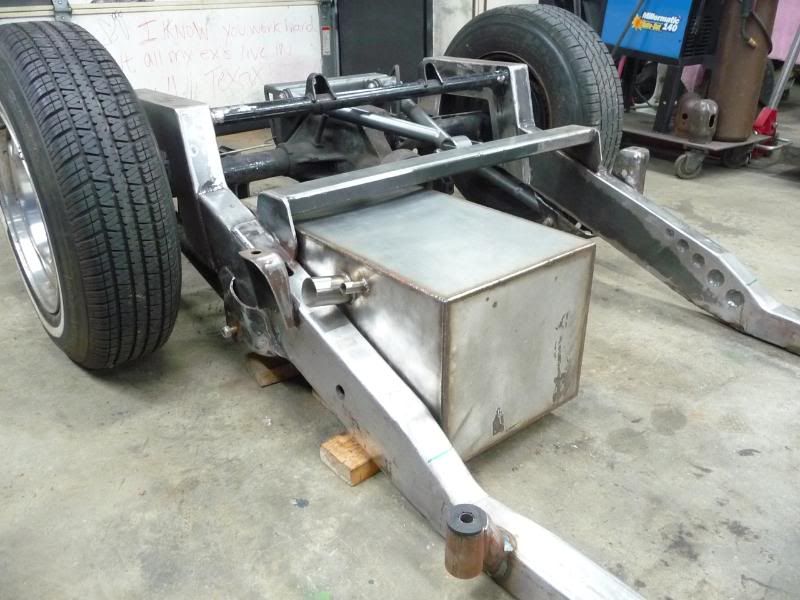

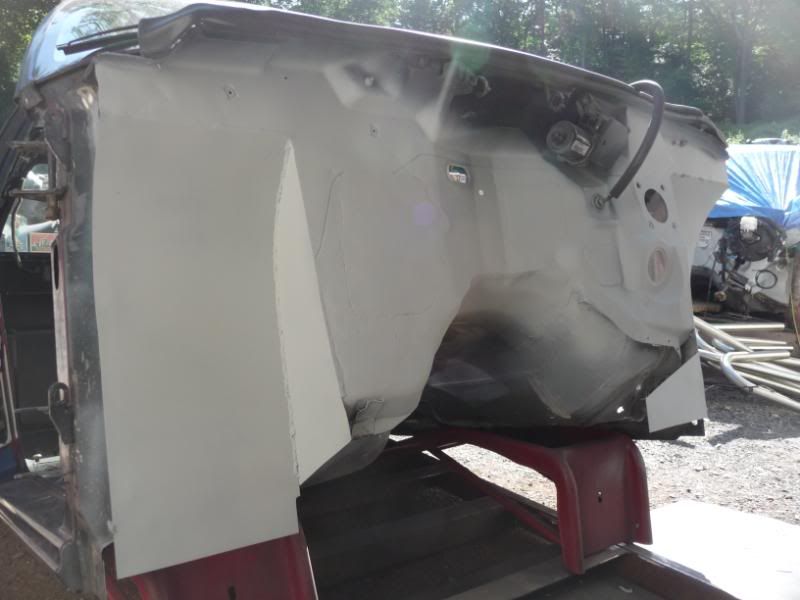

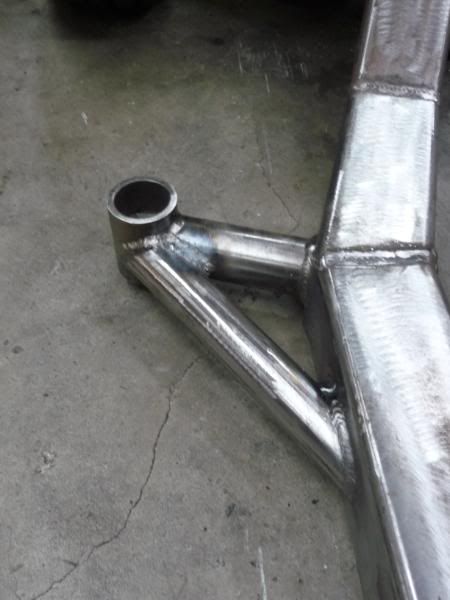

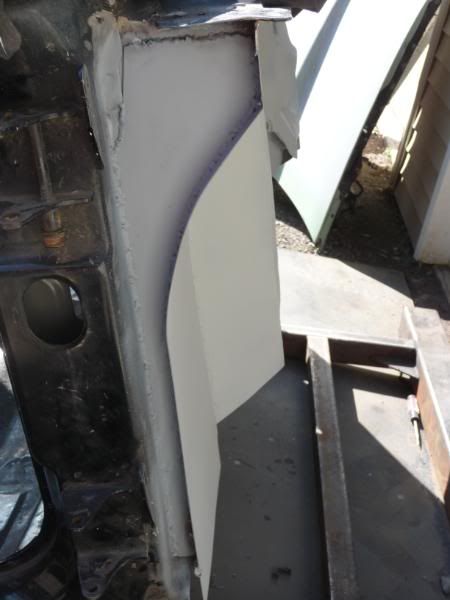

Thanks guys should be goin back together in about a week than its going back to duffys and hes guna plumb everything, wire it, figure out a clutch setup and a bunch of other nesicities, Here are some more pics i was to lazy to walk down to the grage and grab the other camera card last nite, but firewalls done besides mud and bottom edge of the firewall we dnt know how we wana blend it in,so i just sprayed it in epoxy so it wouldnt rust , added bracing to front cab mnts, another trans x mem because the exhaust hole was to close to the floor, did metal braded lines on the calipers, welded up all the holes in the front clip, built a stainless fuel cell which is going to use the factory pump and stay in factory location just putting it on the oppsite side, also we can run the exhaust straight back and dont have to worry about draggin y pipe..

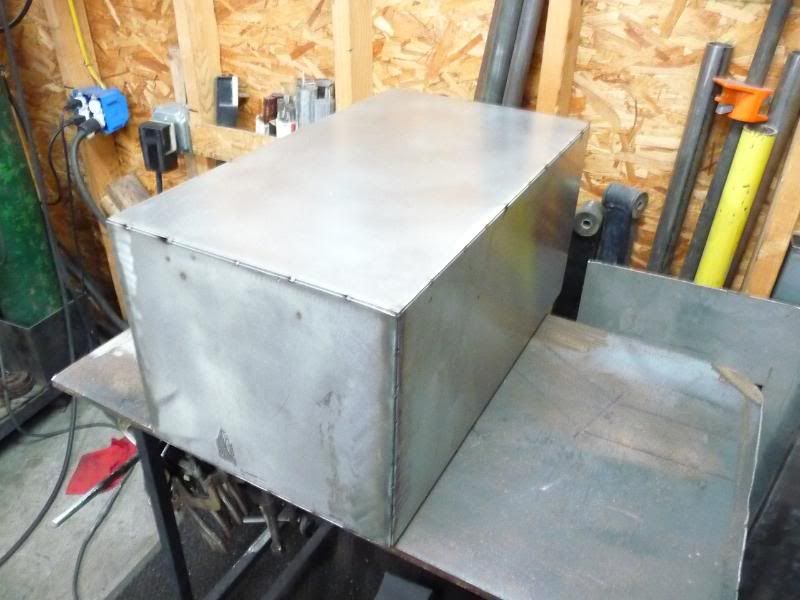

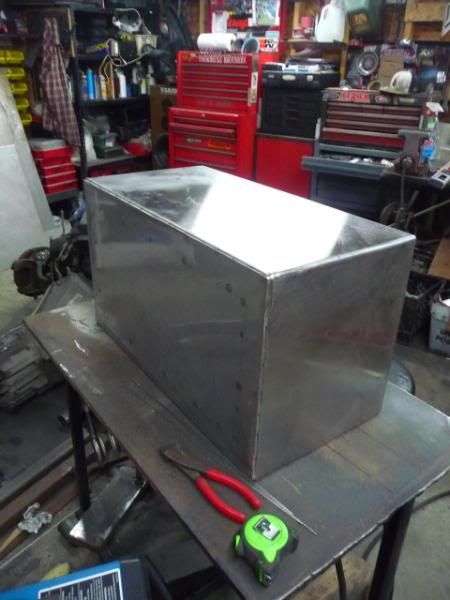

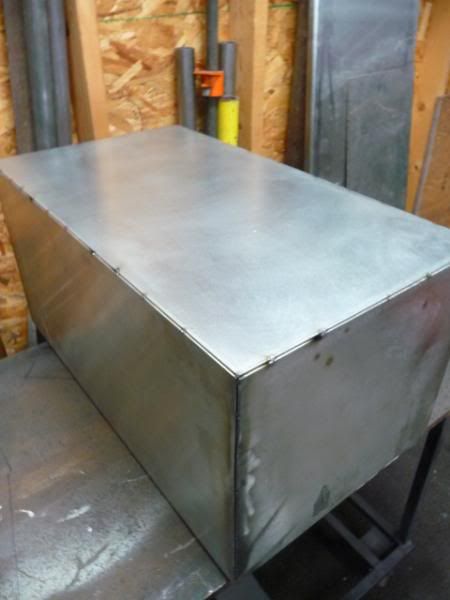

I picked up some stainless boxes with no top or bottom but the sides were all bent so i cut it down to size and made it work.
Bottom

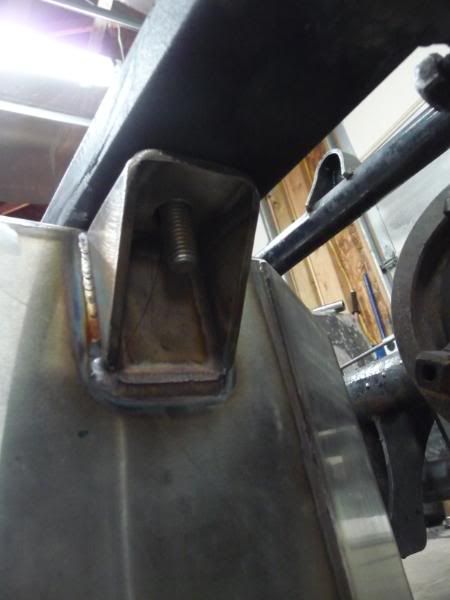

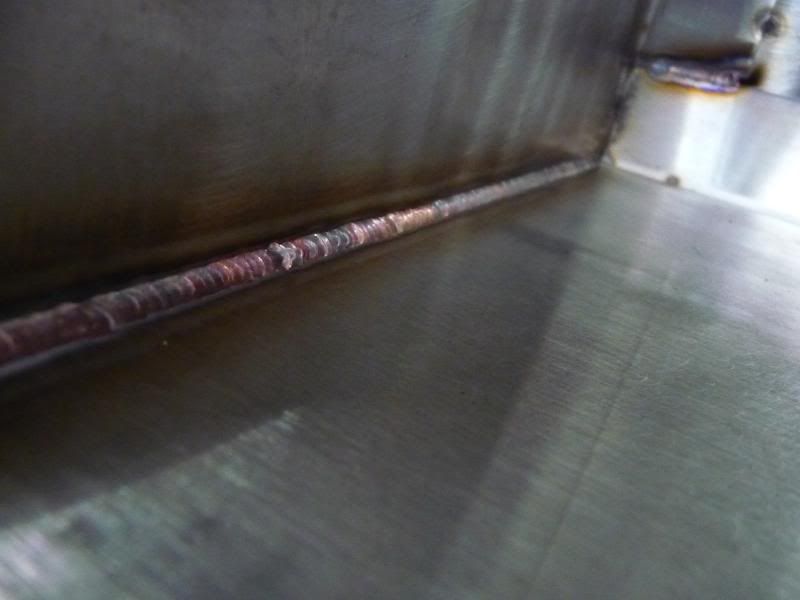

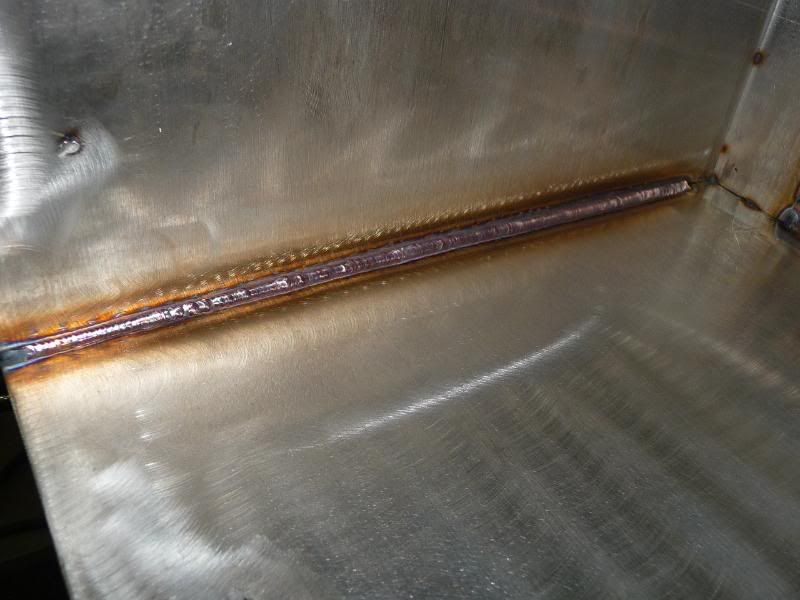

tigged the inside seams

All thats really left is paint inside and underneath the cab smooth firewall spray the frame and start throwing her back tog, but we will see prolly come up with some more ideas...
Big rims are cool but only if you are showing half of them...Dan...
<<

Getbored Designs

User avatar

DONATING MEMBER

Posts: 2136

Joined: Thu Dec 08, 2005 9:41 pm

Post Thu Jul 09, 2009 10:07 am

Re: Another Boring S10 SFBD (pg2)

looks real good Daniel :no:
<<

b-Sol

User avatar

Bagged
Bagged

Posts: 551

Joined: Wed Jan 16, 2008 10:58 am

Location: Dillsburg, Pa

Post Thu Jul 09, 2009 7:25 pm

Re: Another Boring S10 SFBD (pg5)

Holy shit man!!! That thing is looking crazy!!!
:bow:
Brandon Solomon
98 Frontier reg cab
http://www.myspace.com/bSol78
<<

cantcatchmitch

User avatar

Bagged
Bagged

Posts: 461

Joined: Sat Jan 26, 2008 5:50 pm

Location: fredericksburg, pa

Post Thu Jul 09, 2009 8:04 pm

Re: Another Boring S10 SFBD (pg5)

looks awesome, really nice work.
<<

sakustoms

User avatar

DONATING MEMBER

Posts: 2205

Joined: Mon Apr 10, 2006 5:50 pm

Location: Coplay, PA

Post Sat Jul 11, 2009 2:50 pm

Re: Another Boring S10 SFBD (pg5)

looks good Danny Boy..

Give me a call.
Eric
